Description

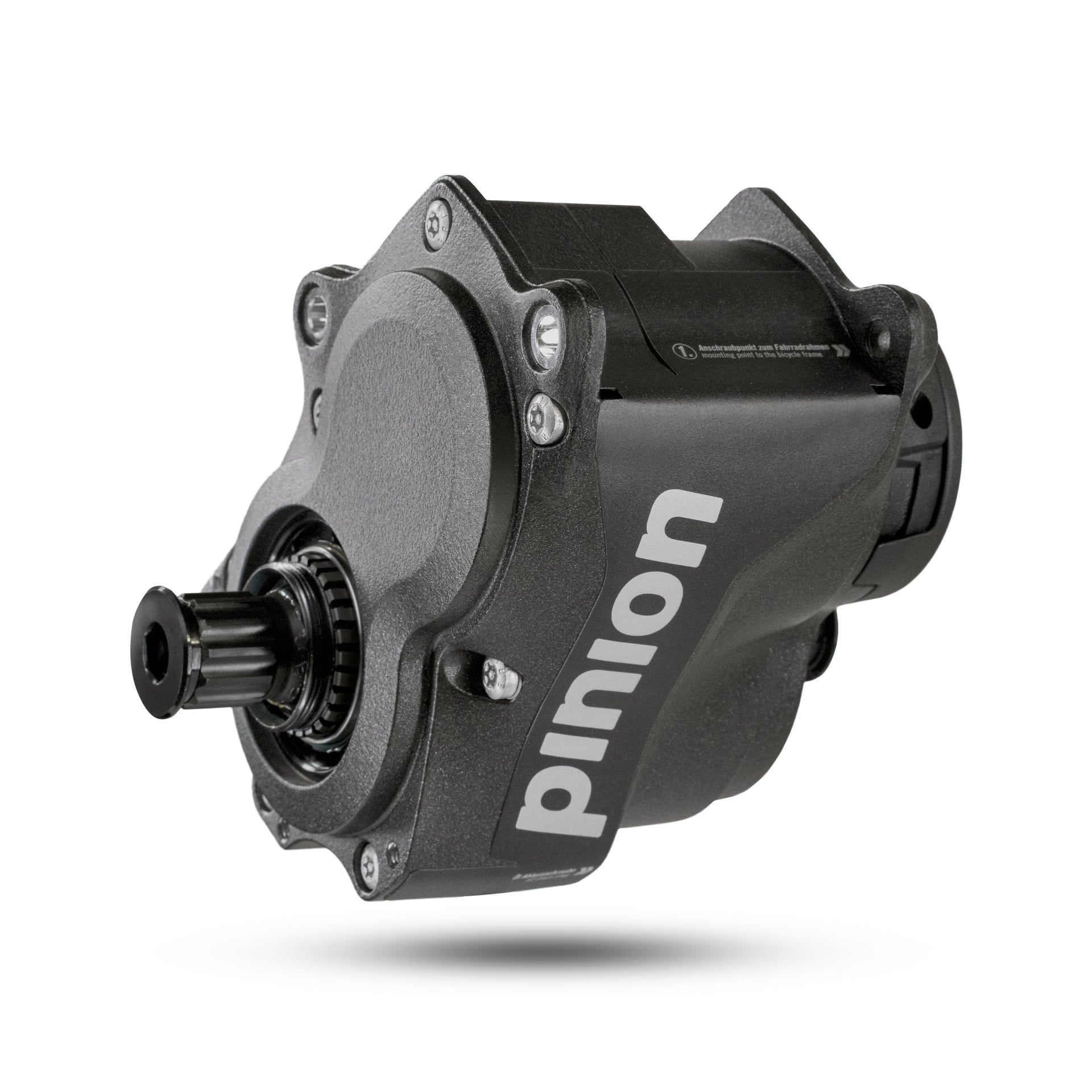

fahrradrahmen pinion C-Line Pinion gearbox – VPL BikeThis is for a gearbox only. You will also need cranks, a DS2 shifter, and a front sprocket (either belt or chain). DESIGN OF THE GEARBOX TYPES Common to all gearboxes is the spur gearing consisting of two sub units connected in sequence. The individual gear ratios are derived by matching the two sub units with various cog pairings. The C1. 12 gearbox is built using a 4 gear unit mated to a 3 gear unit a 4 x 3 gearing type. The C1. 9 is a 3 x 3 type.
This is for a gearbox only. You will also need cranks, a DS2 shifter, and a front sprocket (either belt or chain).
DESIGN OF THE GEARBOX TYPES
Common to all gearboxes is the spur gearing consisting of two sub-units connected in sequence. The individual gear ratios are derived by matching the two sub-units with various cog pairings.
The C1.12 gearbox is built using a 4-gear unit mated to a 3-gear unit – a 4 x 3 gearing type. The C1.9 is a 3 x 3 type.
C1.9
E-bike and enduro riders love the pure efficiency of the 9-speed gearbox. The C1.9 is optimized for applications where larger gear steps and efficient shifting are a priority.
C1.12
The C1.12 gearbox is the shifting system for everyday, leisure and touring riders. 12 finely stepped gears offer an outstanding gear ratio range and unique shifting comfort. With a 600 % overall gear range, the C1.12 gearbox easily outclasses modern derailleur drivetrains.
C1.6
The C1.6 is our lightest gearbox type and is used in urban e-bikes, E-cargo bikes and commercial fleet and rental operations.
| Number of gears | 12 | 9 | 6 | |
| Total range | 600 % | 568 % | 295 % | |
| Step size | 17.7 % | 24.3 % | 24.3 % | |
| Easiest gear | 1.82 | 1.82 | 0.95 | |
| Fastest Gear | 0.30 | 0.32 | 0.32 | |
| Gearbox weight | ca. 2100 g | ca. 2000 g | ca. 1800 g |
